SPL

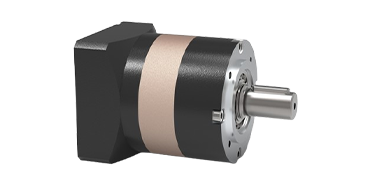

SPL is our highly successful high precision gearbox series.

All SPL planetary gearbox adopt the alloy forged steel as the raw material, the powerful heat treatment, the latest helical gear design, full needle roller bearings, and global top level gear grinding craft. Perfect integrated design of caged planetary carrier and output shaft to realize high rigidity. For any high precision applications, SPL would be your great option for planetary gearhead.

Options

– Output shaft key way, without key be available.
– Synthetic lubrication grease, low temperature grease available.
– Adaptor flange solution available.

Features

– Precision gearing and cost-effective.
– High efficiency and low noise control.
– Long constant operation service lifetime.
– Optimized inertia moment.
– Limited temperature rise.
– Flexible input mounting dimensions.
– Maintenance free for whole service lifetime.

Technical data

Expand all
Collapse all

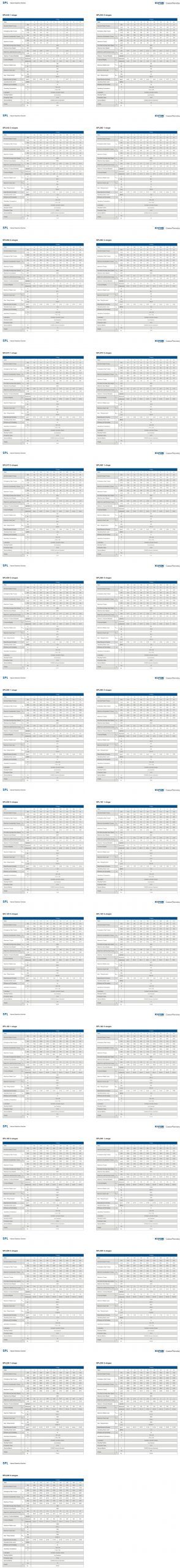

Gearbox Performance Data

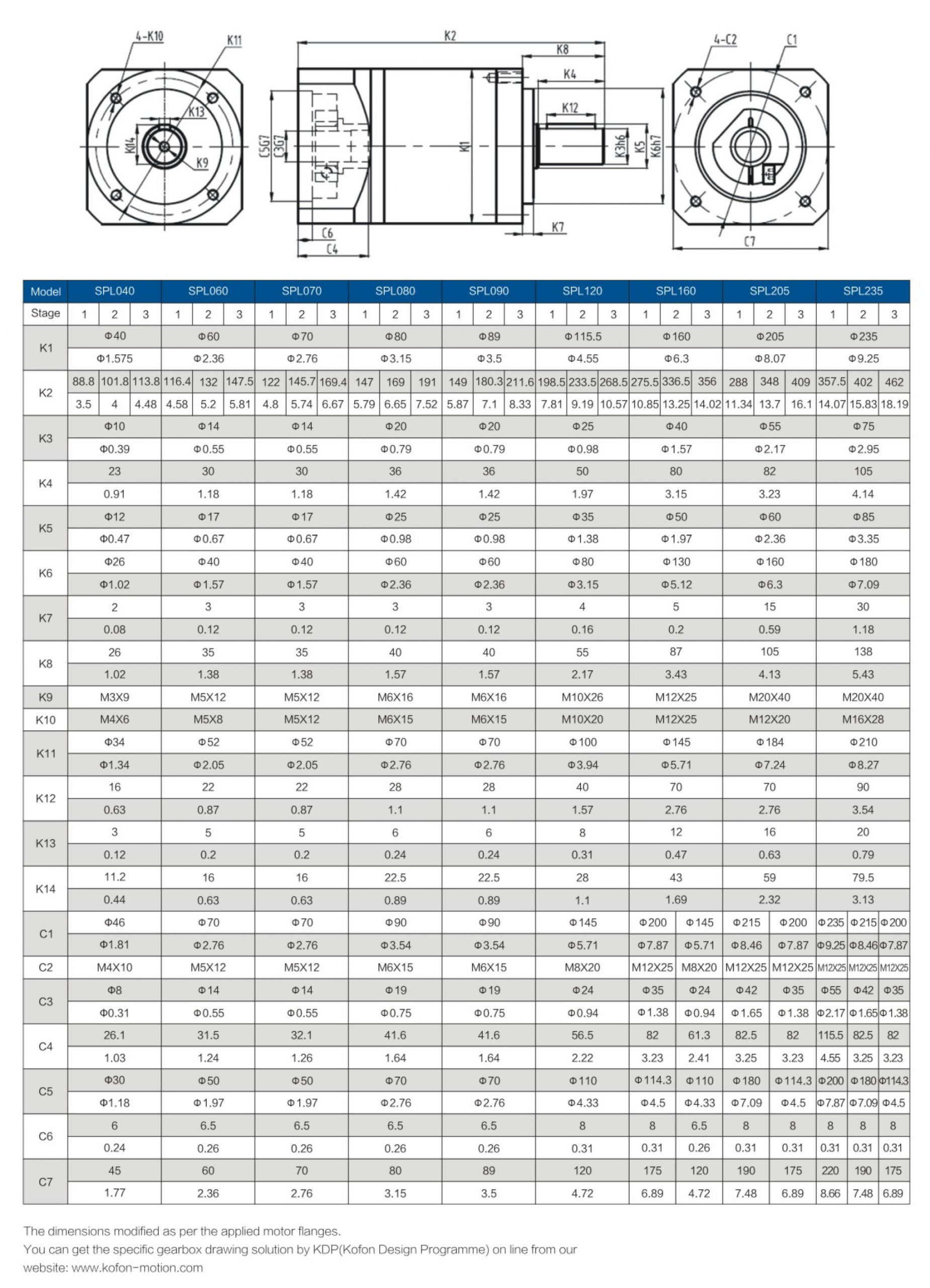

Gearbox Dimensions

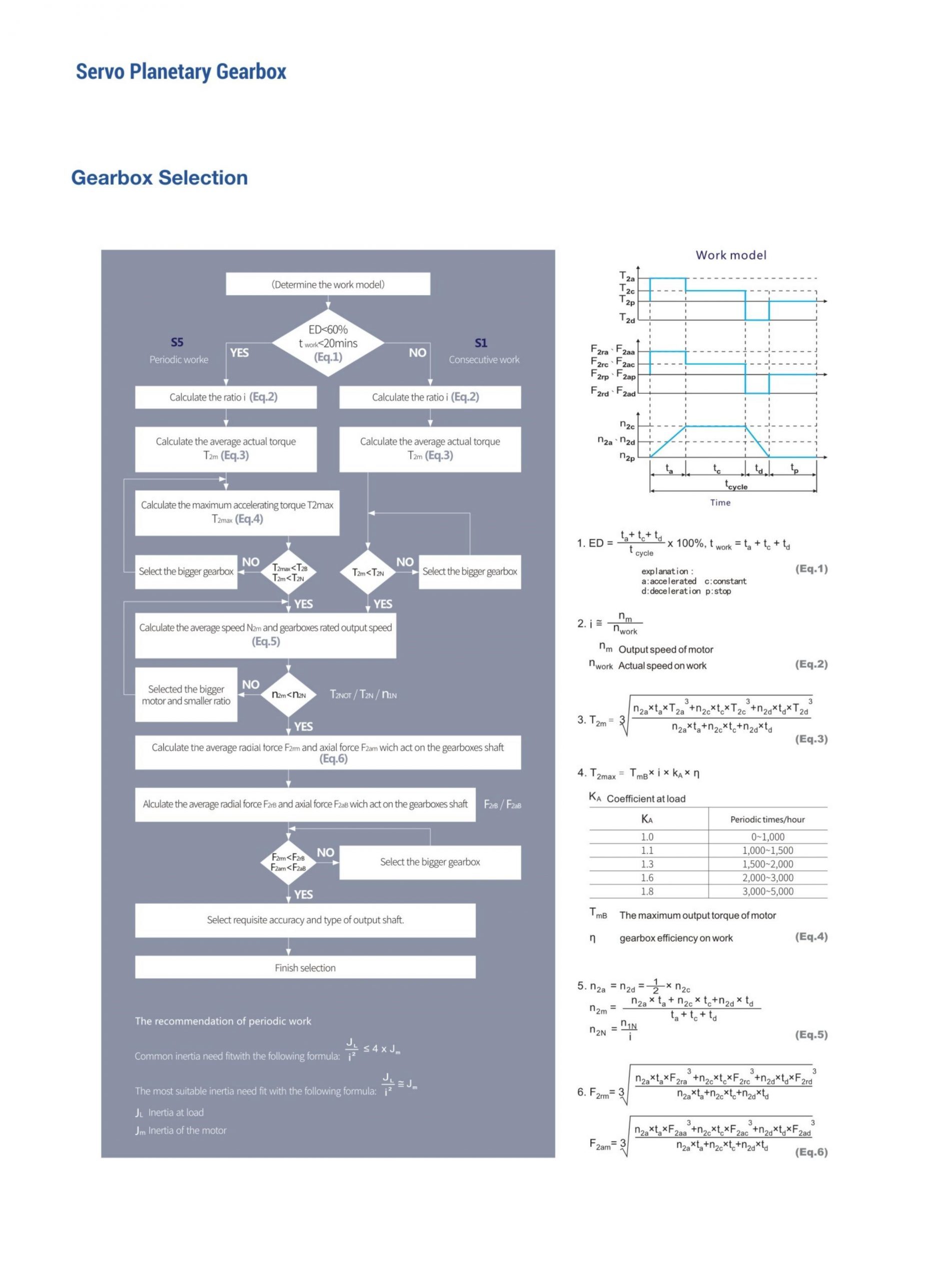

Gearbox Selection Instructions

Gearbox Drawings

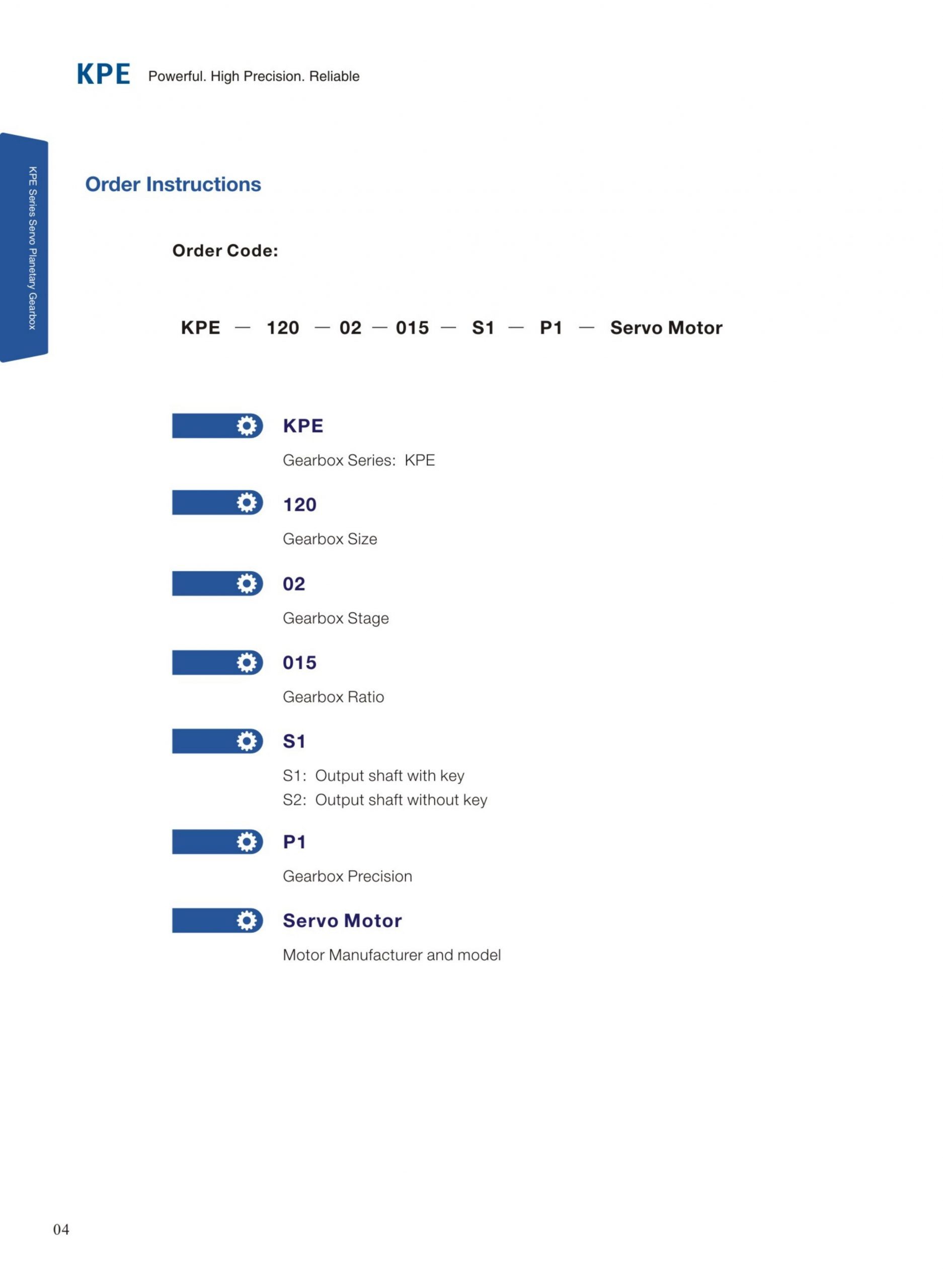

Gearbox Ordering Instructions

Industrial Applications

Entertainment Equipment

Learn More
