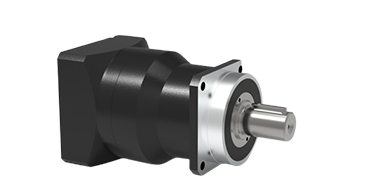

KPG

KPG is our highly successful high precision gearbox series.

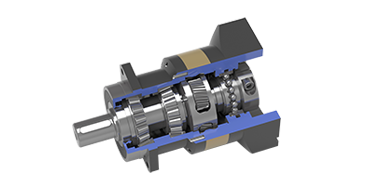

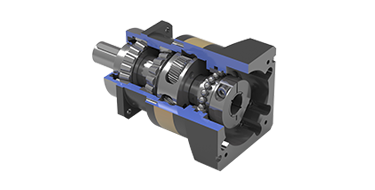

The KPG servo gearbox family are significantly featured by the helical gearing system, patented Master CagedSpindle planetary carrier, super tapper roller bearings and integrated gear housing technology. It provides high performance for radial force, axial force and precision with solid output shaft connection option. The KPG is the powerful servo gearbox solutions for the high and ultra precision motion applications.

Options

  • – Output shaft key way, without key be available.
  • – Synthetic lubrication grease, low temperature grease available.
  • – Adaptor flange solution available.

Features

  • Ratio: 3 – 100
  • Backlash: 1 – 7 acrmin
  • Nominal Output Torque: 42 – 1250 Nm

Technical data

Expand all
Collapse all

Gearbox Performance Data

Gearbox Dimensions

Gearbox Selection Instructions

Gearbox Drawings

Gearbox Ordering Instructions

Industrial Applications

Entertainment Equipment

Factory Automation

Food Industry

Intelligent Logistics

Intelligent Transportation

Laser Processing

Medical Equipment

New Energy

Packing&Printing Machinery

Pharmaceutical Industry

Robotics

Semi-Conductor

Textile Industry

Tooling Machine

Downloads

KPG Series Catalogue
Select the language for your download.
English
  • English
Download
KPG Installation & Maintenance
Select the language for your download.
English
  • English
Download
