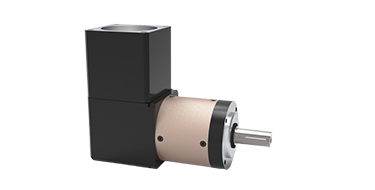

SVL

As our mostly cost-effective right angle servo gearbox family, the SVL is powered by the helical gearing system, high precision gear tooling and bevel gear grinding technology. The SVL is a great right angle servo gearbox solution for the standard precision motion related manufacturing applications.

Options

  • Output shaft key way, without key be available.
  • Synthetic lubrication grease, low temperature grease available.
  • Adaptor flange solution available.

Features

  • Ratio: 3 – 512
  • Backlash: 10 – 15 acrmin
  • Nominal Output Torque: 25 – 608 Nm

Technical data

Expand all
Collapse all

Gearbox Performance Data

Gearbox Dimensions

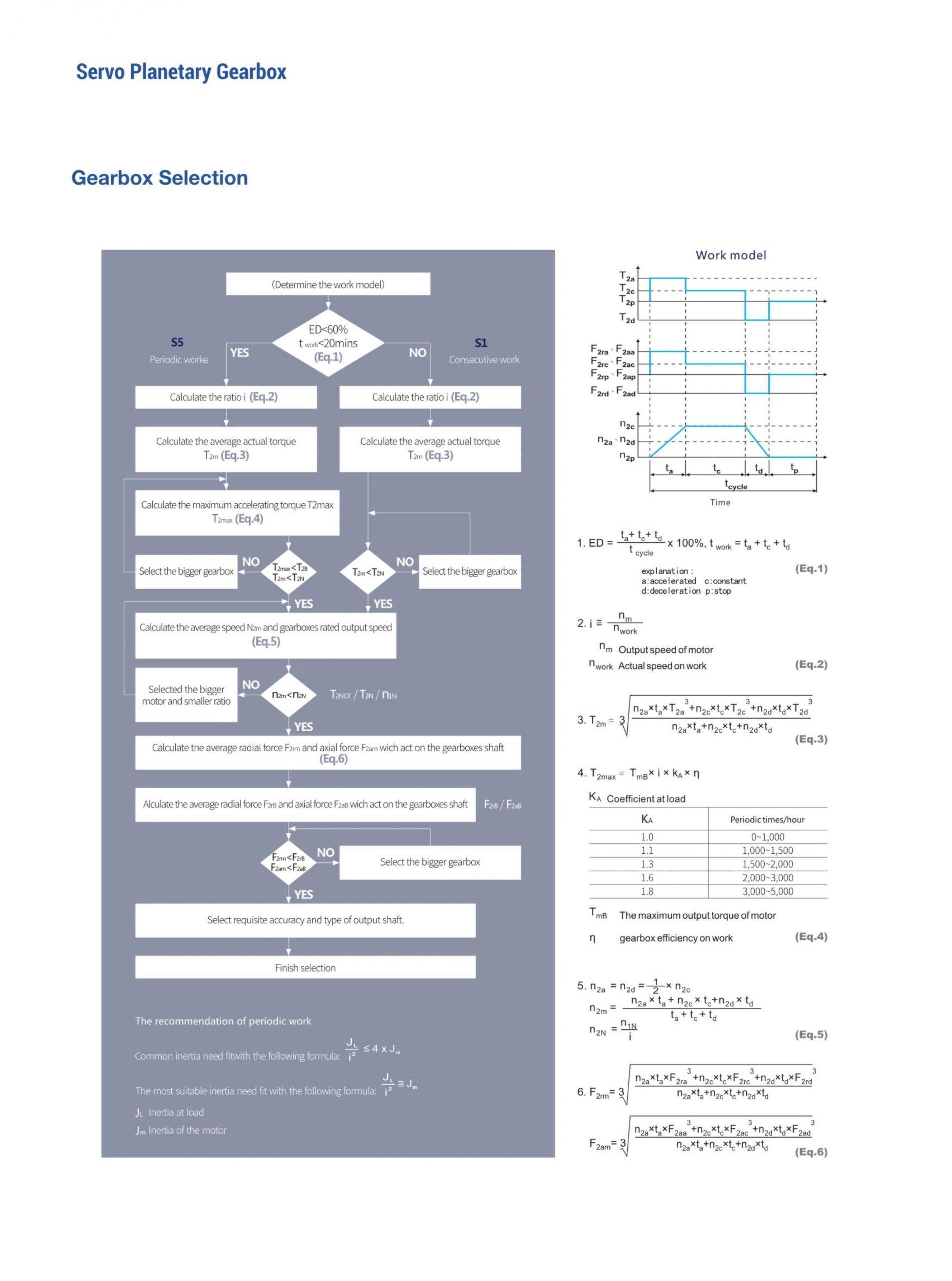

Gearbox Selection Instructions

Gearbox Drawings

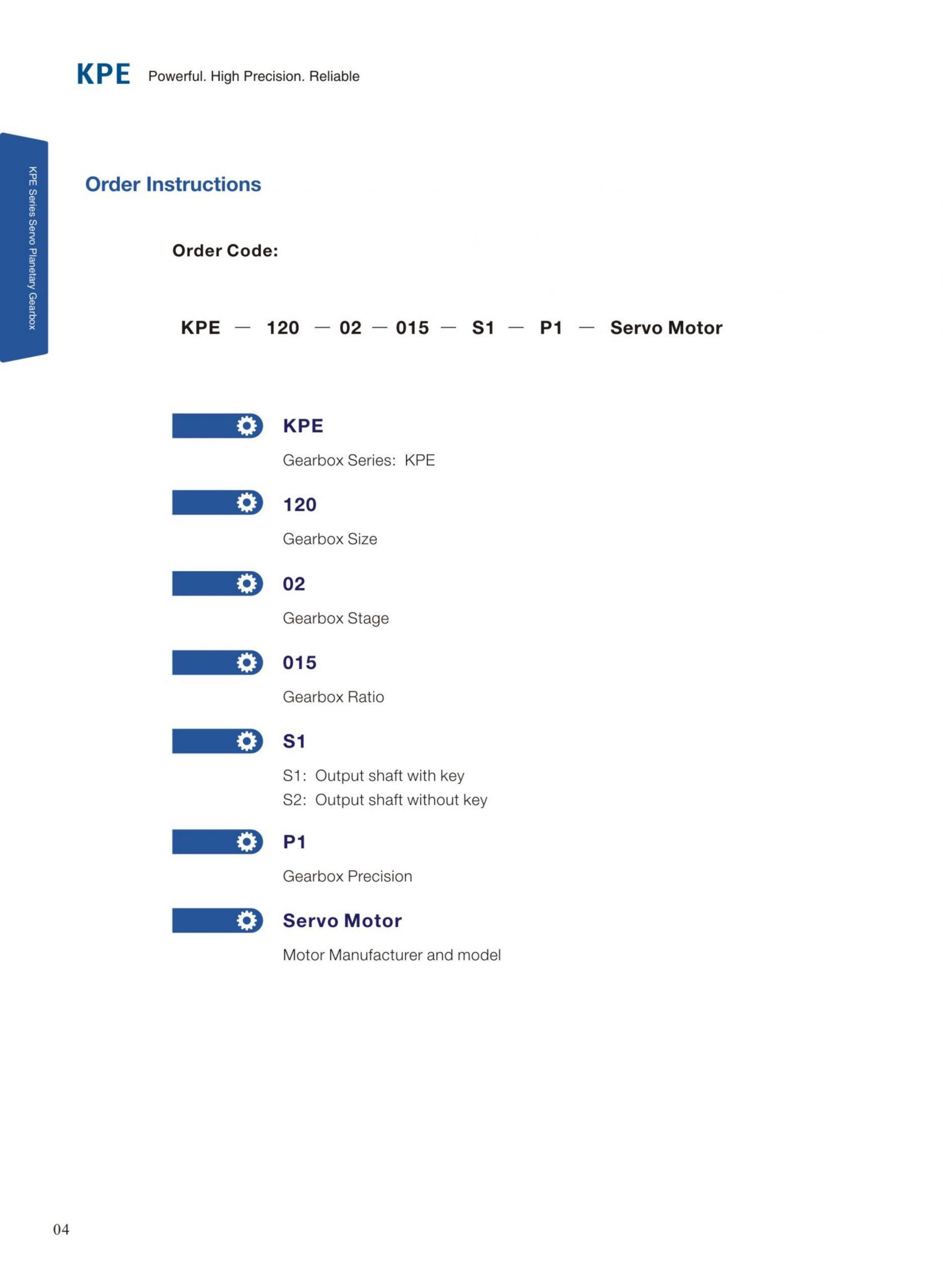

Gearbox Ordering Instructions

Industrial Applications

Entertainment Equipment

Factory Automation

Food Industry

Intelligent Logistics

Intelligent Transportation

Laser Processing

Medical Equipment

New Energy

Packing&Printing Machinery

Pharmaceutical Industry

Robotics

Semi-Conductor

Textile Industry

Tooling Machine

Downloads

SVL Series Catalogue
Select the language for your download.
English
  • English
Download
SVL Installation & Maintenance
Select the language for your download.
English
  • English
Download
