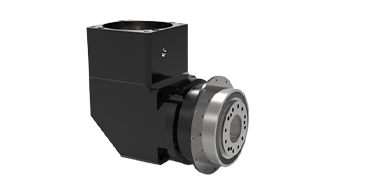

KVH

The KVH servo gearbox family are significantly featured by the helical gearing system, patented Master CagedSpindle planetary carrier, super tapper roller bearings and integrated gear housing technology. It provides high performance for radial force, axial force and precision with disc output connection option. The KVH is the powerful servo gearbox solutions for the high and ultra precision motion applications.

Options

  • Synthetic lubrication grease, low temperature grease available.
  • Adaptor flange solution available.

Features

  • Ratio: 4 – 100
  • Backlash: 3 – 9 acrmin
  • Nominal Output Torque: 42 – 1250 Nm

Technical data

Expand all
Collapse all

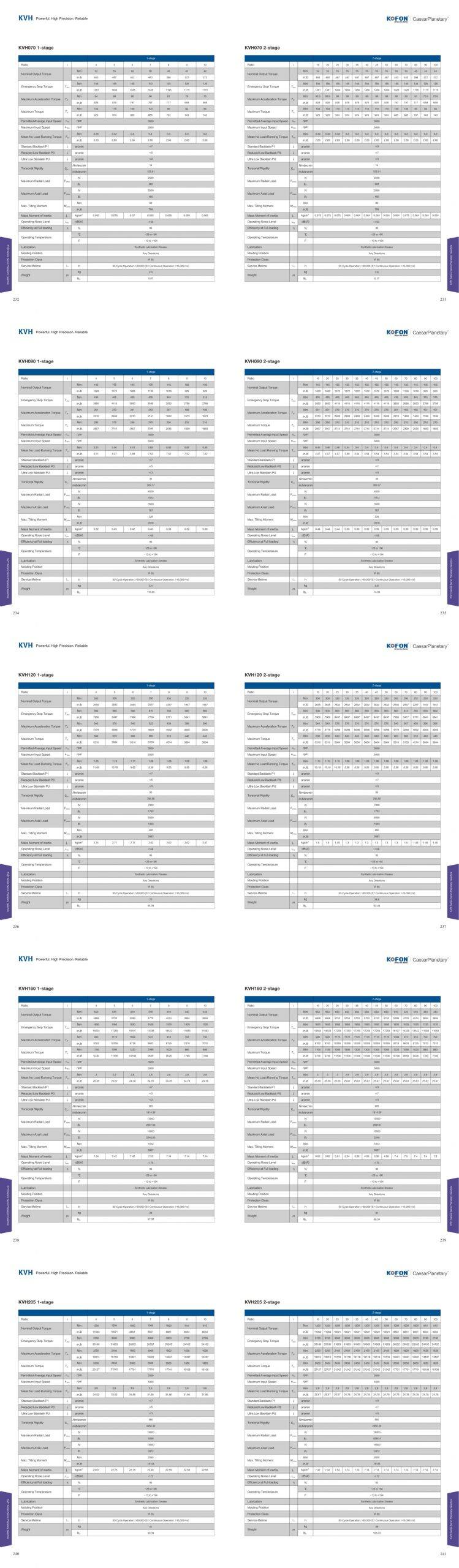

Gearbox Performance Data

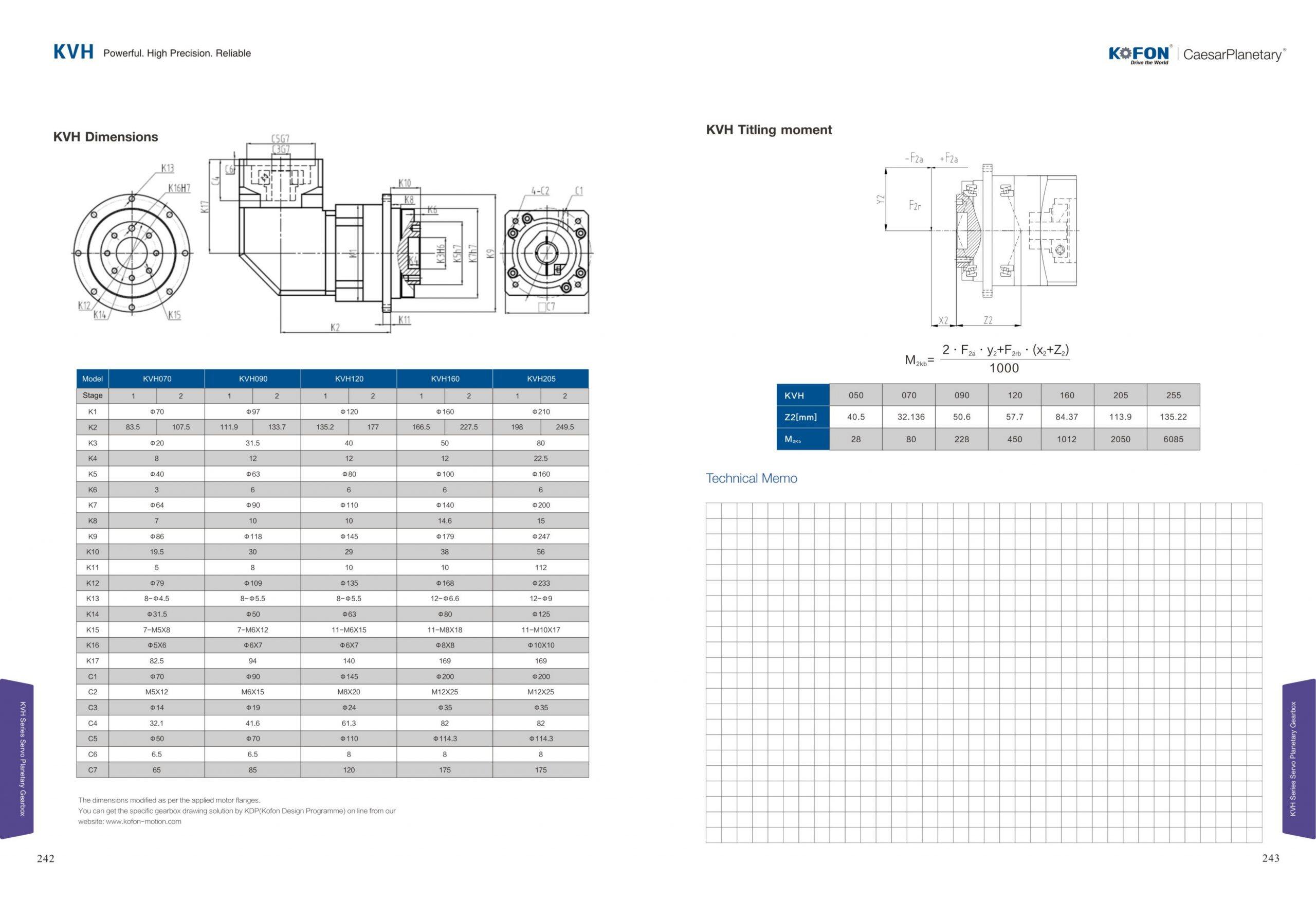

Gearbox Dimensions

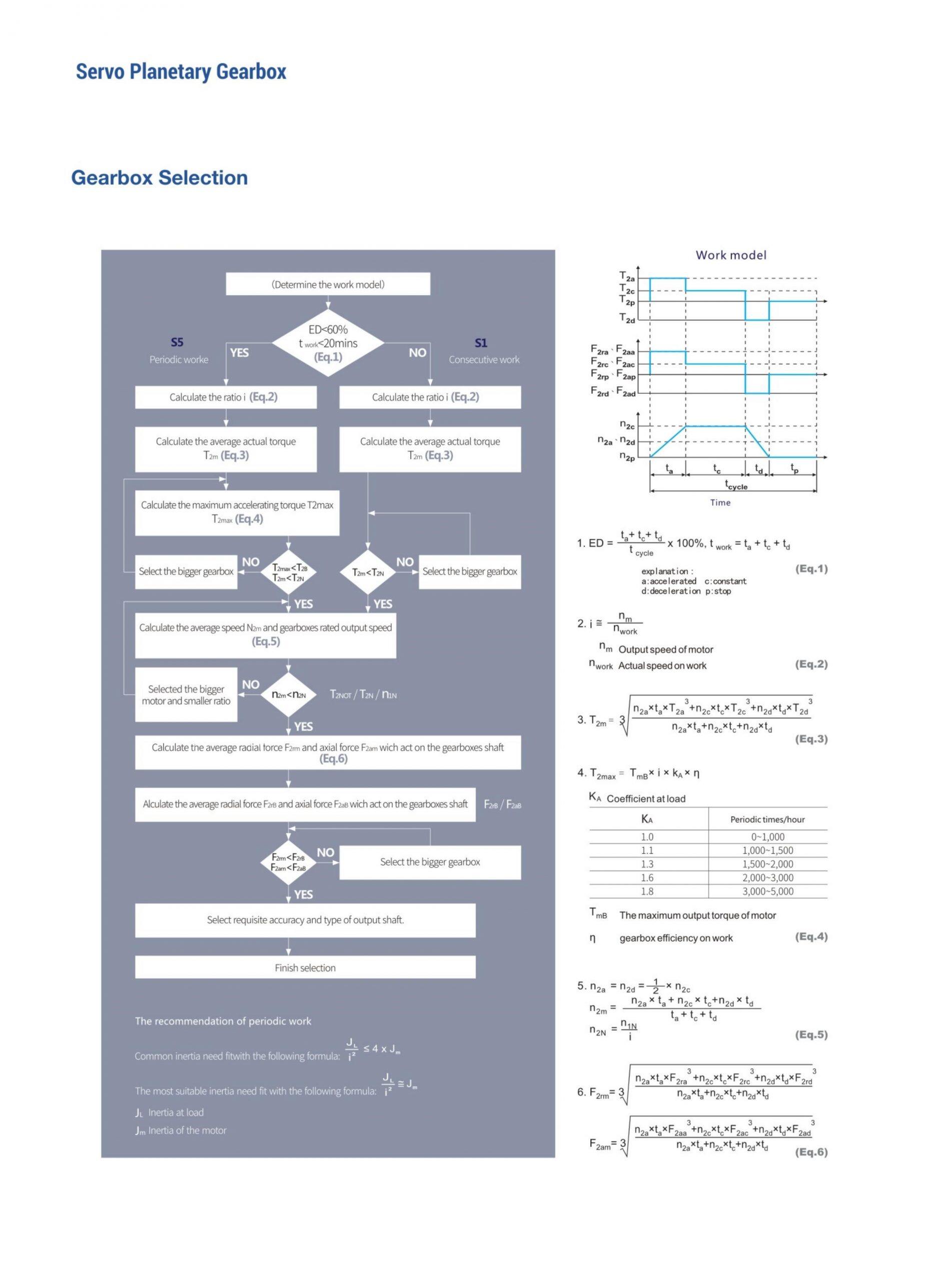

Gearbox Selection Instructions

Gearbox Drawings

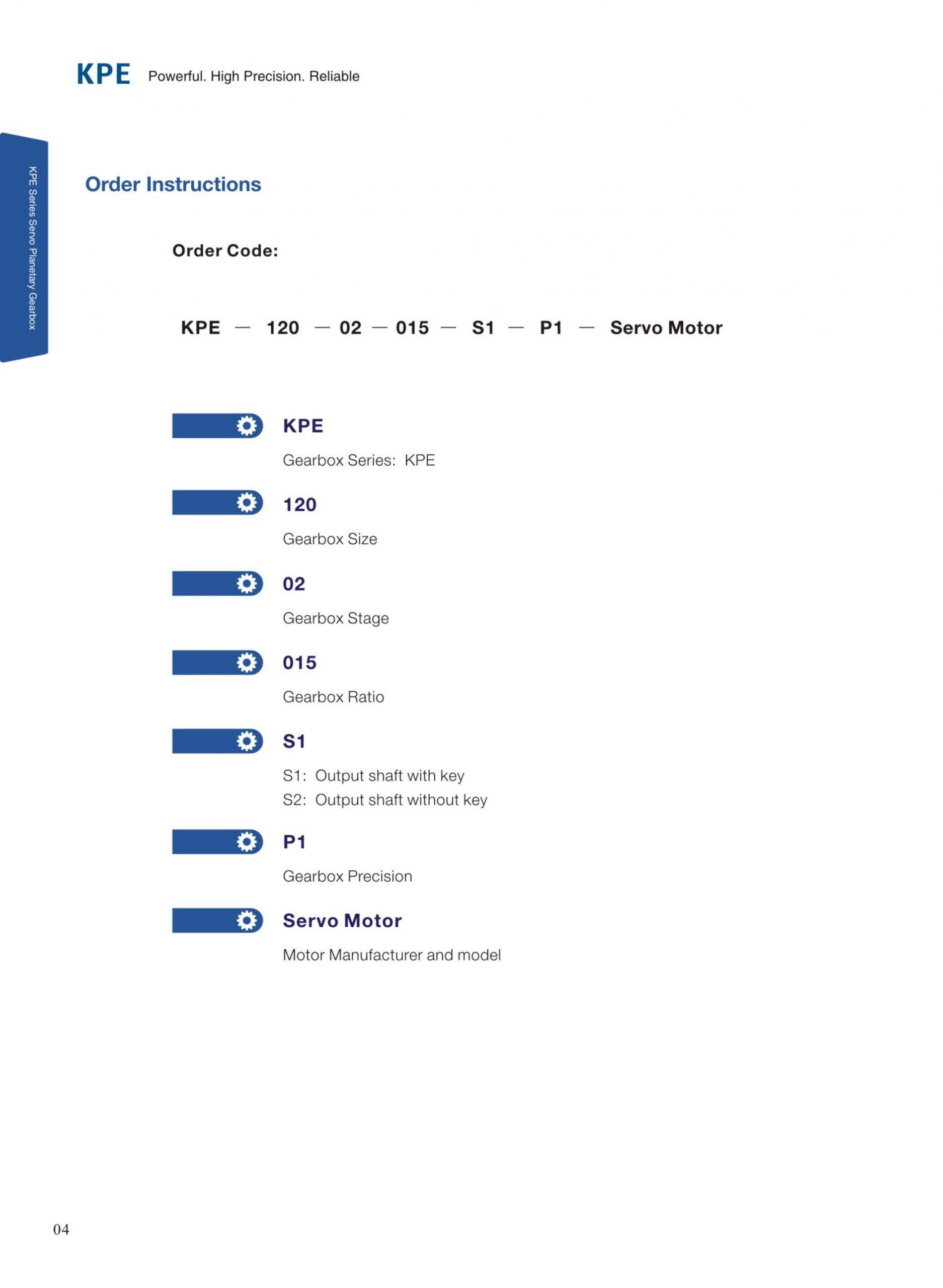

Gearbox Ordering Instructions

Industrial Applications

Entertainment Equipment

Factory Automation

Food Industry

Intelligent Logistics

Intelligent Transportation

Laser Processing

Medical Equipment

New Energy

Packing&Printing Machinery

Pharmaceutical Industry

Robotics

Semi-Conductor

Textile Industry

Tooling Machine

Downloads

KVH Series Catalogue
Select the language for your download.
English
  • English
Download
KVH Installation & Maintenance
Select the language for your download.
English
  • English
Download
